Vertical storage is the only way to hold more decedents when your floor space stays the same. Modern systems turn empty air into usable bays for prep rooms and crematories. This guide shows how to plan your morgue layout for maximum density while keeping your staff safe.

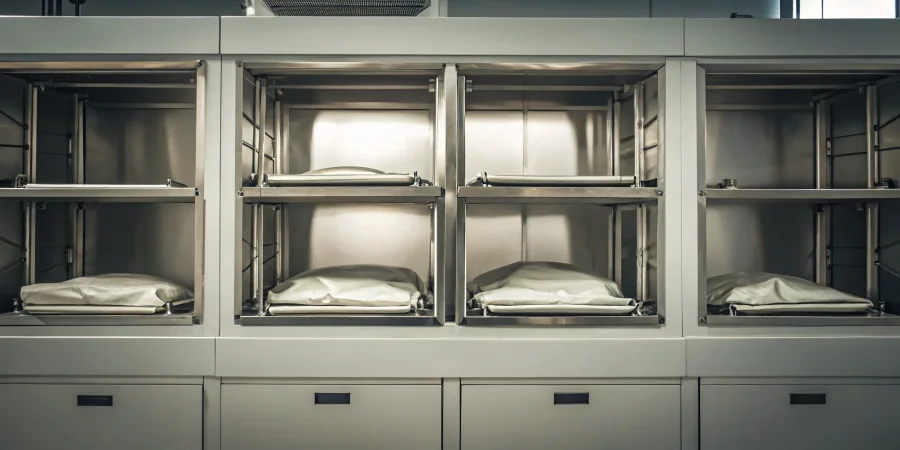

Mortuary cooler racks are the vertical storage systems used to hold decedents and increase the storage space of prep rooms and morgue coolers. These multi-tier units stack body trays to boost your total storage room by as much as 400 percent without using any more valuable floor space. According to the CDC, proper morgue equipment is vital for managing the risks and high potential for staff strain when handling decedents. Choosing the correct rack system needs a careful balance of tray width, weight limits, and the entry needs of your cooler doors. This planning guide will walk you through every detail needed to find a storage solution that fits your specific facility and improves staff safety.
Selecting the right storage system requires a deep look at how your facility operates and the specific components that make up a professional morgue. We will walk you through the key decisions for your cooler setup and start by covering the basics of Understanding Mortuary Cooler Racks and System Components. The path begins with
Understanding Mortuary Cooler Racks and System Components
Mortuary cooler racks are a key part of any funeral home. These racks work as a partner to your walk-in cooler or vault. They help you use your space better and keep your team safe. A storage system includes these racks, body trays, and lifts to move people with care. By choosing the right tools, you can handle more cases without needing a larger site. This allows you to focus on serving families with the best care.
Maximizing Storage through Vertical Design
The main job of mortuary cooler racks is to give you vertical storage. In many funeral homes, floor space is tight. Storing trays on the floor is not a good use of room and can be a safety risk. By using multi-tier racks, you can stack trays on top of each other. You can find racks in two, three, four, or five tiers based on your ceiling height.
Vertical storage can grow your room for bodies by up to 400 percent compared to floor storage. This growth allows you to serve more families during busy times. Some racks are also portable. Portable racks allow you to change your layout when your needs change. They are also helpful for temporary morgue sites or during home repairs. Using these tools helps you make the most of every square foot in your prep room.
System Components and Core Features
Most mortuary cooler racks are built to hold standard body trays or boards. These trays are often 23 inches wide and made from 18-gauge stainless steel. The racks are strong enough to hold up to 300 pounds on each level. This strength ensures the tools stay stable when they are full. To make loading easier, some systems use telescoping slide rails for mortuary coolers. These rails let you pull a tray out fully to check or move a body with less strain. They glide smoothly to prevent sudden moves that can cause injuries.
You also need to choose between side-loading and end-loading racks. End-loading racks are great for narrow spaces where you move trays from the front. Side-loading racks work well in wide rooms where you have more side room to work. Some sites use a mix of both to fit their floor plan. The choice depends on how your cooler is set up and how your team moves. Both styles help keep your workspace tidy and professional. This order makes it easier to track cases and stay organized.
Focusing on Safety and Ergonomics
Using the right racks is about more than just storage. It is also about keeping your staff safe. Handling bodies is a high-risk job for the back and joints. The Centers for Disease Control and Prevention (CDC) notes that proper rack design helps manage these risks. Good design makes it easier for workers to move heavy loads without getting hurt. This is key because staff must often move bodies that are stiff due to rigor mortis.
Safety also includes the air you breathe. Proper racks allow air to flow around each body tray. This flow helps with cooling and keeps the air fresh. The National Institute for Occupational Safety and Health (NIOSH) says good ventilation is needed to control health hazards. When you use racks that fit your cooler perfectly, you ensure that your cooling system works as it should. This keeps the prep room safe for everyone who works there.
Key Rack Configurations: Comparing Tier Counts and Storage Density
Picking the right setup for your cold room starts with a clear look at your floor space. High-density storage helps you use every inch of your cooler. Most funeral prep rooms have very small areas. Building up is the best way to hold more cases without adding onto your building.
These mortuary cooler racks let you stack storage trays safely while keeping them easy to reach. By picking the right tier count, you can build a system that fits your daily work. This keeps your team safe and your shop tidy. A good plan will help you avoid blocks when your case volume rises.
Tiered storage systems
Rack systems for morgues come in many sizes to fit different room and cooler heights. These tiered racks let you store many more bodies in the same small spot you used before. You can pick from several setups based on your needs:
- Two-tier racks for small coolers.
- Three-tier racks for standard prep rooms.
- Four-tier racks for high ceilings.
- Five-tier racks for the most storage.
In many cases, these racks can grow your storage space by up to 400 percent. This happens when you stop storing trays on the floor. This change is a big help for busy shops that need more room. It is much cheaper than building a new wing.
Weight limits and safety
When you plan your rack layout, you must think about the weight of each load. Each shelf in a standard rack can hold about 300 lbs per level. This weight limit keeps the unit steady and safe for your staff. It protects them when they are moving trays in and out.
Good rack design also helps cut down on health risks for your team. The CDC says that safe handling is key when moving heavy loads in a morgue. Using strong racks helps your team avoid back pain and other hurts. These racks make the heavy work much easier on their bodies.
Making the most of your space
The goal of any rack system is to use all the room in your cooling unit from floor to ceiling. If you run a big funeral home or a city morgue, you may need a very wide setup. These systems work well with high capacity multi-bay vault coolers to keep your work moving fast.
By matching your rack height to your cooler door, you can stop wasting space. A smart layout keeps your shop clean and helps your staff find and move trays with no stress. When every tray has a set spot, you can find what you need in seconds. This leads to a better workflow for your whole team.
What are the Benefits of Side-Loading vs. End-Loading Mortuary Racks?
Choosing the right layout for your mortuary cooler racks depends on the size of your room. Facility managers must pick between side-loading and end-loading designs to keep the workflow smooth. These two options change how staff move body trays into the unit and how much open space you need for safe handling. Selecting the best match for your room helps your team manage occupational safety risks and cuts down on physical strain. Proper layout choices make daily tasks safer for everyone.
Side-loading systems for wide spaces
Side-loading racks are best for rooms with wide but shallow storage areas. In this setup, staff slide durable stainless steel body trays into the rack from the long side. This design needs more width but less depth for the trays to clear the rack frame. It is often the best choice for coolers with wide doors or when many racks sit side by side. Side-loading setups can make it easier to reach specific levels without moving other tools.
Using a side-loading layout helps to manage the big ergonomic challenges in a morgue. These designs allow for a short travel path when moving a tray from a lift to the rack. Good equipment design is key to lower the risk of musculoskeletal injuries during this work. When a room has enough width, side-loading mortuary cooler racks give a stable way to store decedents safely.
End-loading racks for narrow layouts
End-loading mortuary cooler racks are the standard choice for deep, narrow units. Staff push the trays in from the short end of the rack. This choice needs a lot of open space in front of the unit. You must have at least the length of a full tray, plus room for the lift and the person using it, to load the rack safely. This design works well in long halls or narrow rooms where floor space is tight but depth is open.
Most end-loading systems use rollers to help the tray glide into place with little force. Because rigor mortis causes joints to lock in fixed positions, your loading system must be strong. End-loading racks give the straight path needed to guide stiff body trays into the cooler without tilting. This stability helps when staff must handle heavy loads or use lifts in a small area. Using an end-loading rack keeps the work path clear while using all the depth in a narrow cooler.
Portable racks for flexible workflows
Portable morgue storage racks offer the most flexibility for changing needs. These units come with strong wheels that let staff move the rack to a prep room or a temporary spot. Portable racks are helpful during room repairs or times of high volume. They allow you to shift your storage layout as your daily work changes without using fixed tools. This makes them a great tool for any mortuary or forensic pathology lab.
Adding portable units to your floor plan can also help with air flow and cleaning. You can move these racks to reach floors and walls for deep cleaning, which is key for a safe work area. Mobile racks also let you move decedents into areas with better air flow if needed. High-quality portable mortuary racks give the same weight limit as fixed units but are easy to move. This makes them a smart tool for labs that need to adapt to different case loads each day.
What is the Industry Standard for Mortuary Body Tray Sizes and Materials?
Choosing the right body trays is a key part of setting up your prep room. Most sites look for gear that fits their mortuary cooler racks. The size and metal you pick will change how you move and store decedents. Good trays must handle heavy weight and stay clean for many years. If the trays are too small or thin, they might bend. This can create safety risks for your team when they move heavy loads.
Standard tray sizes for morgue storage
Standard racks often hold body boards or trays up to 26 inches wide. Most of these trays are 79 inches long to fit most people. These durable stainless steel body trays are built to stay flat under high stress. A tray that is 23 inches wide is also a common choice for many sites. These sizes allow for good air flow inside a cold room.
You must match the tray width to your rack rails before you buy. If the tray is too wide, it will not slide onto the rack. If it is too narrow, it might fall between the rails. Most big sites use a mix of sizes to handle all needs. This helps keep the work flow moving fast without stops. Using the right size makes it easy to move trays between lifts and racks. It also keeps the body stable during a move.
Common materials and metal thickness
Most trays use 18-gauge stainless steel because it is strong. This metal does not rust and is easy to scrub down with soap. A standard 18-gauge tray is thick enough to stop warping. When a body reaches maximum rigor mortis, the joints may lock in place. You need a tray that can hold this fixed weight without any flexing or bending.
The finish on the steel also helps the staff. A smooth finish lets you slide the decedent onto the tray with less effort. It also makes it harder for germs to grow. Many owners pick steel over plastic for long-term use. Steel can handle the cold temps of a morgue for many decades. It is the best choice for a busy funeral home that needs gear that lasts. Heavy metal trays also give a safe base for transport.
Benefits of low-profile storage body trays
Some sites use low-profile storage body trays to save room. These trays have shorter sides than a standard model. They are great for coolers with small shelf gaps. A low-profile tray still gives you the strength of 18-gauge steel. It helps you fit more levels into your vertical racks. This can help you grow your storage without adding more floor space.
These trays are also lighter than deep models. This can help reduce the strain on your back when you lift them. They work well for long-term storage where you do not need high sides. If you have a small prep room, these trays are a big help. They make the most of the space you have. Using low-profile gear is a smart way to stay neat in a tight area.
| Tray Type. | Standard Width. | Metal Gauge. | Best Use. |
|---|---|---|---|
| Standard 23-Inch. | 23 Inches. | 18-Gauge. | Daily prep and storage. |
| Extra Wide 26-Inch. | 26 Inches. | 18-Gauge. | Large decedents. |
| Low-Profile Tray. | 23 Inches. | 18-Gauge. | Tight cooler spaces. |
Designing Your Facility: Space Planning, Workflow, and Sanitation
Planning a prep room takes more than just picking out tools. You must look at how your team moves and how you store decedents. Using upright space with mortuary cooler racks is a smart way to get more room. It helps you keep the floor clear and keeps your staff safe during a busy shift.
Improving prep room safety
Safe handling of decedents is one of the biggest tasks for any funeral home. Workers face a high risk of back and muscle strain when they move heavy loads. The CDC notes that body safety plays a major role in keeping staff healthy. Proper rack systems make it easier to slide trays without lifting. This protects your team from harm and long term hurt.
Some cases present unique needs that your gear must handle. Rigor mortis can lock joints in place. This makes bodies stiff and hard to move. You need durable stainless steel body trays that hold these fixed states. Sturdy trays and smooth rails help you work around these hurdles with less effort. This keeps the workflow steady and safe even in tough times.
Managing high volume workflow
Planning for high volumes is vital for busy morgues and large funeral homes. A small space can get crowded when many decedents arrive at once. Managing these large groups puts workers at a higher risk of stress and hurt. Racks help you sort these peaks by stacking storage levels. This keeps the work area tidy so you can focus on your tasks.
Good air flow is also a key part of your site design. Proper vents help control risks from chemicals and germs in the air. The CDC provides guides on how to keep your prep room air safe for everyone. Make sure your racks do not block vents or fans. A clean, well-vented room makes for a much better work space for your team.
- Measure your floor space and door height to find the best rack size.
- Pick between side-loading or end-loading racks based on how you move cots.
- Select multi-tier systems that can hold the weight of decedents in stiff states.
- Leave enough room around the racks so staff can clean every part.
- Place your racks where they will not stop air from moving through the room.
We know that setting up a new layout is a big task. Our team at Vischer Funeral Supplies can help you find the right fit for your site. We offer advice based on many years of work in this field. Contact us to start your space plan today.
Measurement and Procurement Checklist
Choosing the right mortuary cooler racks needs exact planning to ensure a perfect fit for your room. A unit that does not match can lead to slow work or safety risks for your staff. Before you buy, you must check the size of your storage area and the tools you use now. Our team at Vischer Funeral Supplies suggests a full review of your site to stop common mistakes.
Check cooler and door size
You must measure the inside height, width, and depth of your cooler before you buy new racks. These units must pass through the door with enough room for staff to move. A standard rack often holds durable stainless steel body trays up to 26 inches wide. Make sure your door does not block the path of your lift during use.
Good space planning is also a matter of health and safety. The CDC notes that good airflow is needed in prep areas to control health risks. When you add big racks, you must make sure they do not block the air. A crowded room can trap fumes, which puts your team at risk during daily work.
Look at weight and load limits
Each site has different needs, so you must pick a rack that matches your work. Most standard rack levels have a weight limit of about 300 lbs for each tier. If your site handles large cases, you may need heavy duty low-profile storage body trays made for extra weight. Going over these limits can cause gear to fail and lead to hurt staff.
Safe handling is key when moving the dead. Using the right racks helps lower occupational safety risks by making it easier for staff to move bodies. When joints lock after death, you need a firm tool that lets trays move well. Picking the right tier count and layout ensures your team can work without too much physical stress.
Talk with our expert team
To avoid bad buys, we suggest talking with a pro before you pay. Our team can help you plan your floor to make sure your new mortuary cooler racks work with your current lifts and trays. We focus on giving you help that fits your room and needs without spending too much.
If you have questions about what fits or when it will ship, call our team at 800-752-8767. You can also text us at 717-503-9838 for a quick answer from one of our pros. We are here to act as a trusted partner in your prep room and help you build a safer, better facility.
Frequently Asked Questions
What are the benefits of side-loading versus end-loading mortuary racks?
End-loading racks allow you to slide body trays into the system from the narrow front side. This design works well in long, narrow coolers. Side-loading models let you load trays from the wide side. These systems are better for wide, shallow walk-in units where space in front of the rack is limited. Choosing the right design depends on your cooler depth and door layout to ensure smooth workflow during daily operations.
How do mortuary cooler rack systems differ by tier count?
Standard racks come in two, three, four, and five-tier options to meet your storage needs. A higher tier count allows you to use vertical space more effectively. According to Speedrack West, multi-tier systems can increase your total storage capacity by as much as 400 percent compared to floor storage. This makes tier count a key factor when planning for high volume decedent management in a small footprint.
How does proper rack design improve facility safety?
Elite rack systems help manage occupational risks by making decedent handling more ergonomic. Heavy lifting and moving rigid bodies can lead to serious musculoskeletal injuries for funeral staff. Using well-designed racks and lifts reduces these physical strains. As noted by the CDC, understanding these ergonomic risk factors is vital for keeping workers safe and healthy in a morgue or preparation room environment.
How much weight can a mortuary cooler rack level hold?
Most standard mortuary storage racks are built to support at least 300 pounds on each individual tier. This capacity ensures the system stays stable and safe when it is fully loaded with decedents. It is important to check the weight limit of your specific model before use. Heavy-duty racks are also available for facilities that often handle larger cases or require extra structural strength for long-term use in forensic or medical examiner settings.
